Optima Scale OP-901B-2PT-LCD Indicator, Replacement for OP-919 Pallet Beam Scale/ Load bars

The Optima OP-901B-2PT-LCD indicator is specifically used with the OP-919 pallet beam scale. This is only to be ordered as a replacement indicator option, it has 2 load cells connectors in the back.

Features

• Two inputs for use with the OP-919 pallet beam scale
• AC adapter included
• Gross/Tare/Pre-Set Tare/Zero
• Multiple hold functions
• Splash proof keyboard and display

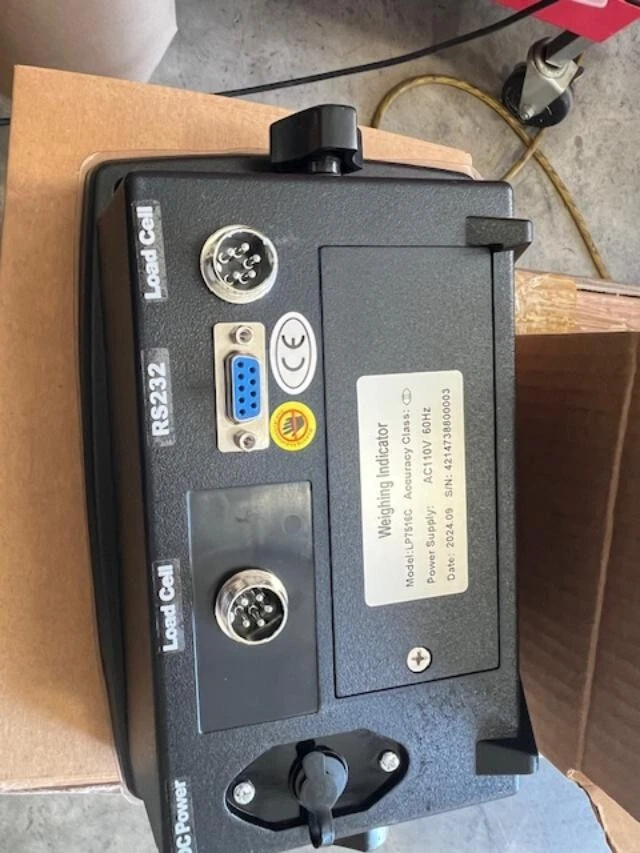

• Full duplex RS-232 that can connect to a remote display or printer
• 1 year warranty

Functions

• General weighing
• Accumulation
• Animal Weighing
• Checkweighing
• Counting


indicator LCD:

• • Stainless Steel Wall Mount Bracket
  • Accurate and Fast Response Time Indicator
  • Plastic Enclosure
  • Different options available
  • 1 Year Warranty
  • Plastic enclosure with mounting bracket and hardware
  • 1″ LCD Dispaly with backlight goor for outside and inside
  • Functions: Zero, gross, net, accumulation, printing, counting, check weighing, auto-hold
  • Units: lb/kg selectable
  • RS-232 output
  • Ability to modify gravity based on different geographical locations
  • Drives up to 8 350ohm load cells
  • 4V Rechargeable battery

  • LED	6-digits, 1″ with backlight
    Key	5 double function, flexible membrane
    Housing	Plastic
    Mounting	Desk-top, Wall, Column, Adjustable Angle
    Accuracy	6000e, max:30,000d; resolution 0.3uV/e
    Option	See “Options”



  • Accuracy class 6000e/30000D
  • Resolution display: 30,000 ADC: 2, 000000
  • Zero stability errorTK0< 0. 1 V//K
  • Span stability error TKspn< ± 6 ppm//K
  • Conversion time 50ms
  • Sensitivity (internal) 0. 12μ V /count
  • Input voltage 5 VDC, 4 wire connection,all strain gauge, min. 50Ω, e. g. : 6 load cell of 350Ω
  • AC power AC 100~250V
  • DC power DC4v/ 4Ah rechargeable battery, 700mA
  • Operation temperature- 10°C to 40°C
  • storage temperature- 40°C to 70°C
  • Indicator Dimensions 7. 87’’(L)X 2. 95’’(W) X 7. 17’’(H)
