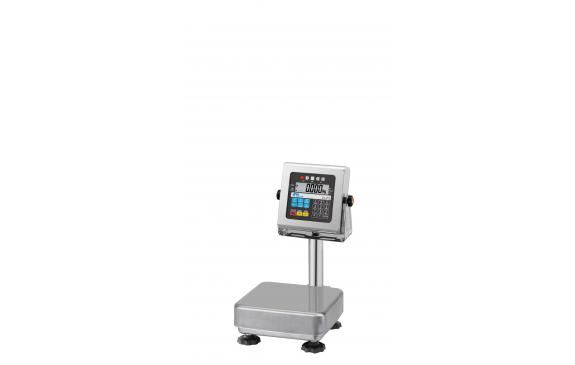

A&D HW-10KCWP Waterproof Bench Scale, 20 lb x 0.002 lb, IP65, Comparator Lights (Replaces HW-10KWP)

Description

A&D HW-10KCWP Waterproof Bench Scale (Successor to the A&D HW-10KWP)

The A&D Weighing HW-10KCWP is a 20 lb × 0.002 lb high-resolution scale, IP65 for washdown areas, with 5-step comparator lights. A&D replaced the HW-WP series with the HW-CWP series, and the HW-10KCWP is the successor to the discontinued A&D HW-10KWP: the same 20 lb capacity and 0.002 lb readability, now with a backlit LCD, traffic-light comparator, and 10-key keypad.

Key Features

• 20 lb × 0.002 lb (10 kg × 0.001 kg), 10,000 divisions across the full range
• IP65 washdown construction
• 250 × 250 mm (9.8 × 9.8 in) stainless pan
• 5-step LED comparator lights to stop over-filling and give-away
• 10-digit keypad and memory for comparator limits
• Backlit LCD with 26 mm digits, 10 updates per second
• Counting, accumulation, and auto-tare; lb, kg, and oz

Applications

Portioning, Packaging and Formulation

Fill and check-weigh small packs, portions, and ingredients in wet areas, with the comparator lights showing under, OK, or over at a glance.

Parts Counting and QC

Count small parts and run quality checks with 0.002 lb readability across the full 20 lb range.

A&D HW-10KCWP Specifications

What’s in the Box

• A&D HW-10KCWP scale with stainless pan and column display
• Instruction manual

The USB, RS-232C, and comparator relay interfaces (HVW-02BCWP, HVW-03CWP, HVW-04CWP), printer, and cables are options, not included.

HW-10KCWP vs. HW-10KWP

Owners of the A&D HW-10KWP get the same capacity and readability in the HW-10KCWP. The new model adds a backlit LCD in place of the old VFD, 5-step traffic-light comparator lights, a 10-key keypad with comparator memory, and AC mains input from 100 to 240 V. Need trade-legal weighing? See the NTEP-approved A&D HV-15KCWP.

Calibration Options from MNM Scales

Get your HW-10KCWP calibrated and ready to use on day one. Add either option to your order, and our TDA-licensed technicians calibrate it in-house before it ships:

• In-house calibration with certificate, using NIST-tested weights: $250. We calibrate and verify your HW-10KCWP with NIST-tested weights and include a calibration certificate, so it arrives set up and accurate. Add $250 calibration to cart
• NIST calibration with a NIST-traceable certificate: $595. Full calibration documented on a NIST-traceable certificate, for labs, QC programs, and audits that need a paper trail. Add $595 NIST calibration to cart

We also recalibrate scales and balances you already own, including the HW-10KWP, by mail-in or in our shop, with on-site service across Houston and the surrounding area. Request calibration or call (832) 290-3120.

Manuals and Documents

The A&D HV-CWP / HW-CWP datasheet and instruction manual are available from A&D Weighing, or call us and we will send them.

Frequently Asked Questions

Does the HW-10KCWP replace the HW-10KWP?

Yes. A&D discontinued the HW-WP series; the HW-10KCWP is its successor at the same 20 lb × 0.002 lb.

Is the HW-10KCWP legal for trade?

No. It is a high-resolution scale for in-house weighing and checkweighing. For selling by weight, choose an NTEP-approved HV-CWP model such as the A&D HV-15KCWP.

Can it be washed down?

Yes. It is IP65 rated, protected against dust and water jets. Do not submerge it.

Can MNM Scales calibrate the HW-10KCWP before it ships?

Yes. Choose in-house calibration with a certificate, using NIST-tested weights, for $250, or NIST calibration with a NIST-traceable certificate for $595.
