A&D AD-4212D-33 Weigh Module, 32 g x 0.001 mg, Production Weighing System

Description

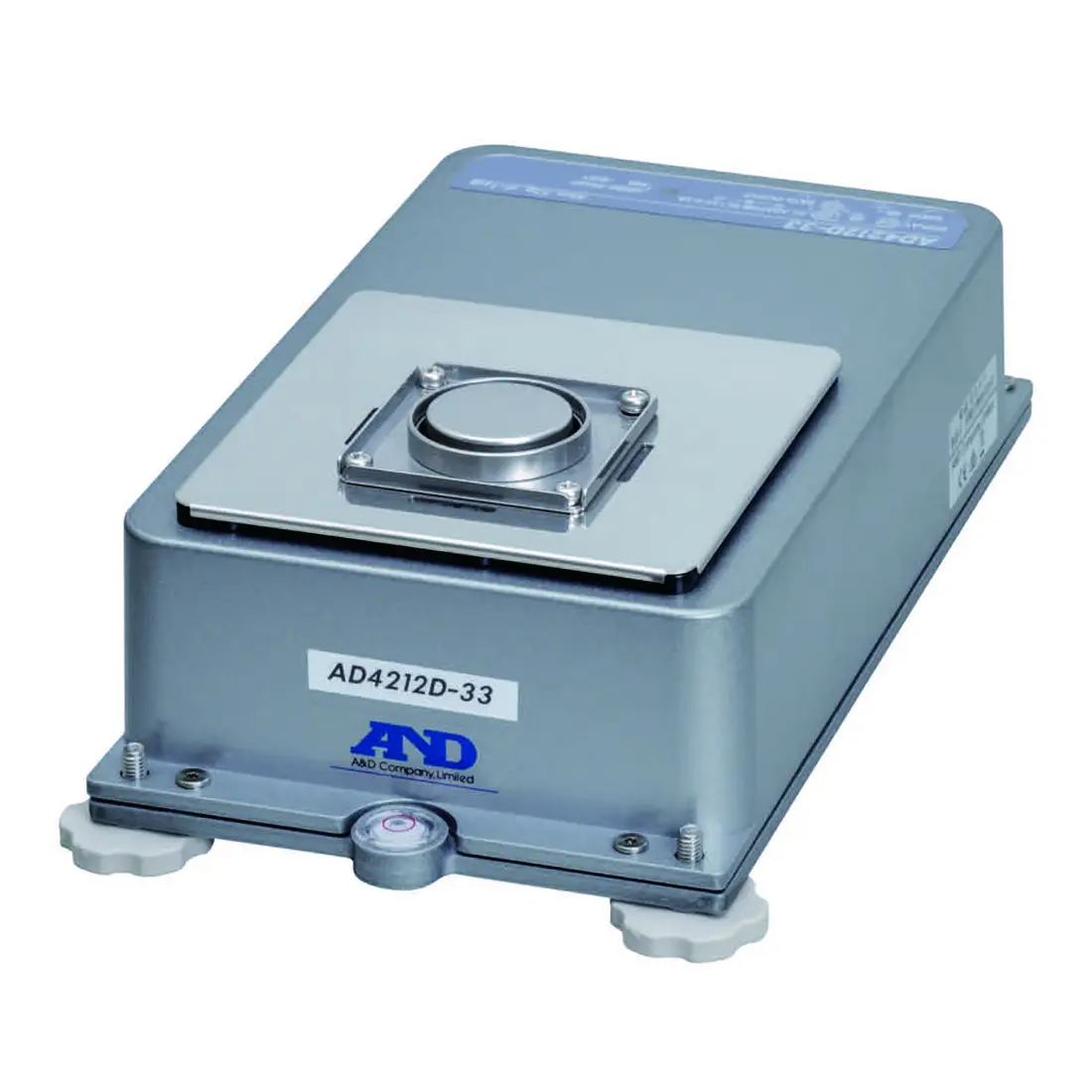

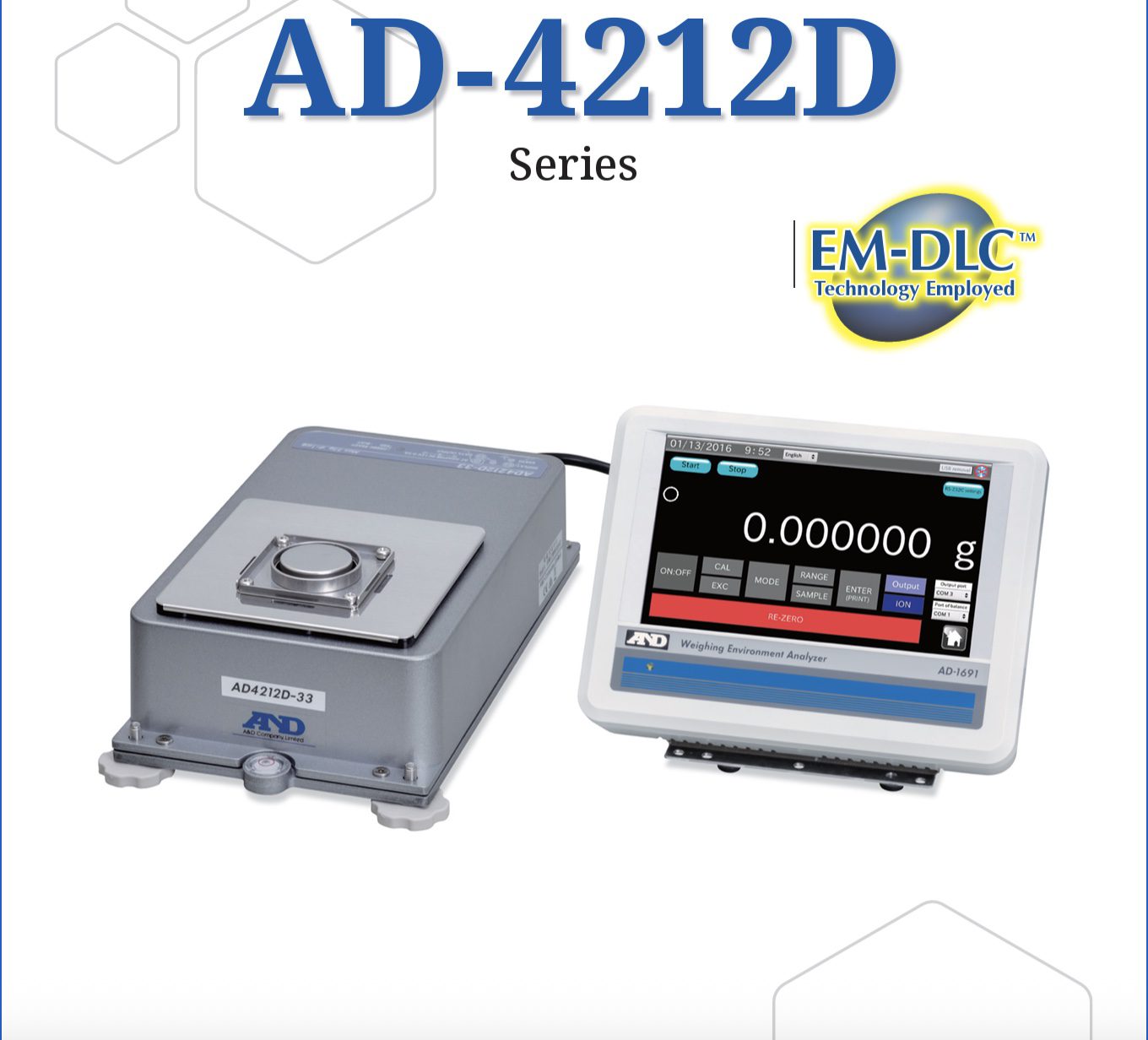

A&D AD-4212D-33 Weigh Module: 32 g × 0.001 mg for Production Lines

The A&D Weighing AD-4212D-33 is a 1-microgram weigh module for production lines. It weighs up to 32 g in 0.001 mg (1 µg) steps and has a built-in internal calibration weight. It connects directly to a PC or PLC.

Replaces the A&D AD-4212B-23

The AD-4212D-33 is A&D’s replacement for the discontinued AD-4212B-23. It keeps 0.001 mg readability and adds more capacity (32 g vs. 21 g) and internal calibration.

Key Features

• 32 g × 0.001 mg (1 µg), repeatability 0.002 mg
• Internal calibration weight, one-key adjustment
• Integrated A-to-D converter: connect directly to a PC or PLC
• Underhook for magnetic materials and density work
• Small breeze break; IP65 cap for cleaning
• Replaces the A&D AD-4212B-23

Applications

Automated Dosing and Filling

Weigh powders, liquids, and coatings inside filling and dispensing machines, with data sent straight to the controller.

Electronics, Batteries, and Pharma

Check small components, electrolyte fills, and tablet or capsule weights on the line.

Enclosures and Glove Boxes

The slim sensor fits inside enclosures, isolators, and test rigs where a full balance won’t.

A&D AD-4212D-33 Specifications

What’s in the Box

• A&D AD-4212D-33 weigh module
• Ø34 mm pan and small breeze break
• Instruction manual

Calibration Options from MNM Scales

Get your AD-4212D-33 calibrated and ready to use on day one. Add either option to your order, and our TDA-licensed technicians calibrate it in-house before it ships:

• In-house calibration with certificate, using NIST-tested weights: $95. We calibrate and verify your AD-4212D-33 with NIST-tested weights and include a calibration certificate, so it arrives set up and accurate. Add $95 calibration to cart
• NIST calibration with a NIST-traceable certificate: $395. Full calibration documented on a NIST-traceable certificate, for production lines and audits that need a paper trail. Add $395 NIST calibration to cart

We also recalibrate scales and balances you already own, by mail-in or in our shop, with on-site service across Houston and the surrounding area. Request calibration or call (832) 290-3120.

Frequently Asked Questions

Is the AD-4212D-33 the replacement for the AD-4212B-23?

Yes. A&D points AD-4212B-23 users to the AD-4212D-33, which has the same 0.001 mg readability, 32 g capacity, and internal calibration.

Can it connect to a PLC?

Yes. It has an integrated A-to-D converter for direct connection to a PC or PLC.

Can MNM Scales calibrate the AD-4212D-33 before it ships?

Yes. Choose in-house calibration with a certificate, using NIST-tested weights, for $95, or NIST calibration with a NIST-traceable certificate for $395.
