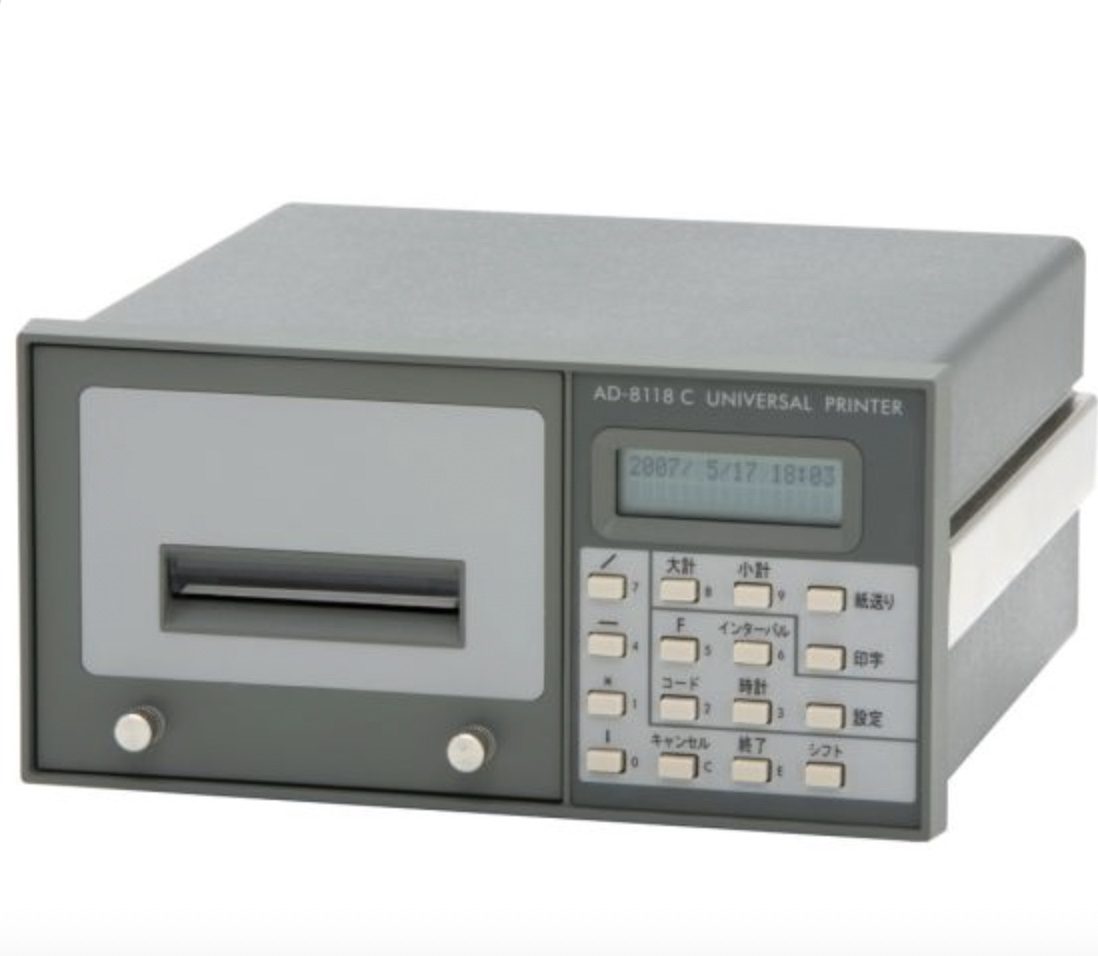

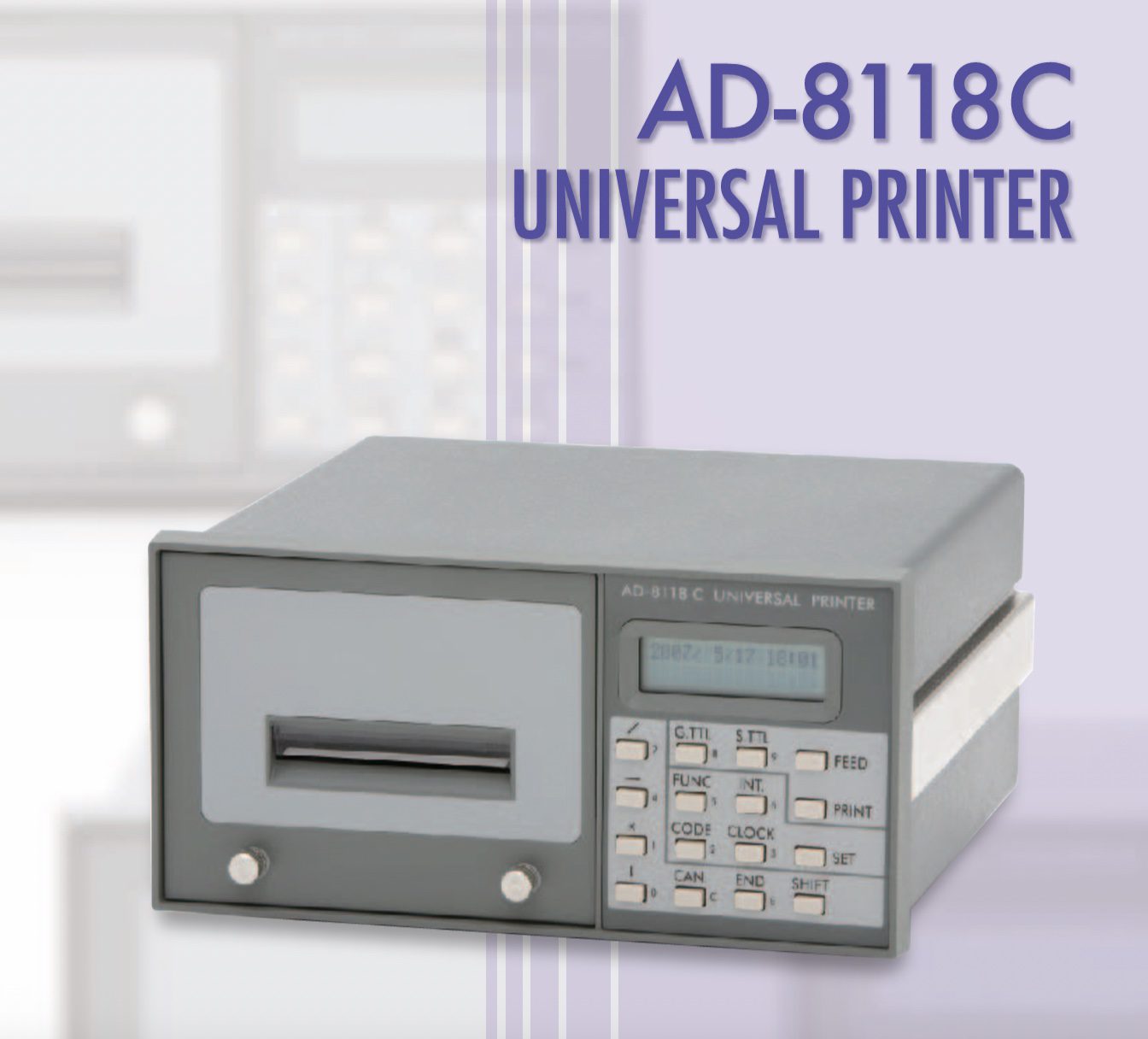

A&D AD-8118C UNIVERSAL PRINTER
Original price was: $1,899.00.$698.00Current price is: $698.00.
The A&D Weighing AD-8118C Printer and Printhead is a compatible replacement or expansion item for supported weighing equipment. Confirm the model, connector, dimensions, voltage, and installation requirements before ordering.
Description
A&D AD-8118C UNIVERSAL PRINTER
The A&D Weighing AD-8118C Printer and Printhead is intended for use with compatible weighing equipment and helps restore, replace, or expand the original system. Because scale revisions can use different connectors, wiring, voltages, dimensions, or mounting hardware, compare the exact model and part number before ordering.
Key Features
- LCD display
- Communication options: RS-232C
- Date and time printing function (built-in calendar/clock)
- Cumulative memory function (Memory stored even if the power supply is switched off.)
- Internal battery provides calendar/clock and cumulative memory function back-up for approx. 10 years
- Cumulative/statistical calculation functions by code/ input channel
- Print modes* : Random, Dump, Interval, and Batch
- Print format modification function using the operation keys (in the random print mode)
- Connectable to external displays (up to 3 devices) with a current loop output (channel 1 only)
- Up to 4 data output devices including indicators (AD-8118C-02 required) can be connected to a single AD-8118C printer
- Receives input signal via a current loop (maximum length of approx. 100m) or RS-232C (maximum length of approx. 15m)
Recommended Applications
- Printed weight tickets
- Label and receipt output
- Production documentation
- Replacement printer maintenance
Specifications
| Brand | A&D Weighing |
|---|---|
| Model | AD-8118C |
| Product type | Printer and Printhead |
| Display | LCD |
| Interfaces | RS-232C |
| Condition | New |
| MNM Scales SKU | AD-8118C |
| Print type | Dot matrix impact printer |
| Number of characters | Standard: 24 characters 5 1 line (5 5 7 dot) Enlarged: 12 characters 5 1 line (10 5 7 dot) |
| Character size | Standard: 1.7(W) 5 2.6(H)mm Enlarged: 3.4(W) 5 2.6(H)mm |
| Printing speed | Approx. 1.7 lines/second (Internal processing time excluded) |
| Reliability | 1,000,000 lines |
| Print color | Black |
| Ink ribbon life | Approx. 200,000 characters (Depending on surrounding environment) |
| Printer paper | AX-PP137-S (10 rolls), 57.5(W) 5 ·0mm, Approx. 8,000 lines/roll |
| Data communication | RS-232C/Current loop, switching with a slide switch |
| Control I/O | Input: Print/Feed paper/Batch print/Lot print, etc. Output: Busy/Printing, Open collector |
| Power | 100V to 240V(+10% -15%) AC (85V to 264V AC), 50/60Hz |
| Weight | Approx. 2.0kg (Shipping weight: approx. 3.5kg) |
| Operating temp. & humidity range | 0-C~40-C, 80% RH or less (No condensation) |
| External dimensions | 192(W) 5 185(D) 5 96(H)mm |
| Panel cut dimensions | 186(+1.0,-0.0) × 92(+0.8,-0.0) mm |
| LCD display | 16 characters 5 2 lines (Character: 2.15mm width 5 4.35 mm height) |
| Power consumptione | When AD-8118C-02 is installed: approx. 17VA When AD-8118C-02 and AD-8118C-10 are installed: approx. 20VA |
Compatibility and Ordering Notes
Confirm the complete scale model, indicator revision, connector type, pinout, voltage, dimensions, and manufacturer part number before ordering. Similar-looking parts are not always electrically or mechanically interchangeable. Calibration or configuration may be required after installation.
Manuals and Manufacturer Documents
Compatible Accessories and Related Products
Compatible accessories, replacement parts, calibration options, and related models are assigned to this listing where verified. Review the related-product section below and confirm model compatibility before adding accessories to the order.
Why Buy from MNM Scales?
MNM Scales supplies professional weighing equipment, replacement parts, calibration support, and product-selection assistance for laboratory, commercial, and industrial customers. Bulk-quantity and certified-calibration options may be available for qualifying products.
Additional information
| Weight | 20 kg |
|---|---|
